How are U bolts Measured Correctly?

If you’ve ever been involved in manufacturing or construction, you probably know that precision is key, especially when choosing fasteners. One of the most common questions that arises in the selection process is: how are U-bolts measured?

Understanding how to measure U-bolts properly is crucial to making sure they fit your application. Whether you’re mounting pipes, securing beams, or reinforcing structural components, getting the dimensions right can make all the difference between success and failure. At Stelrod Mfg, we specialize in custom U-bolts, and we’re here to guide you through the process.

What Are U-Bolts?

Before diving into measurements, let’s quickly review what a U-bolt is and what it does. A U-bolt is a type of fastener that’s shaped like the letter “U” with threaded ends. It is commonly used to secure cylindrical objects, like pipes, to a surface or framework.

Whether it’s pipe mounting, structural framing, or machinery support, U-bolts play an essential role in keeping components securely fastened and aligned. The U-shape allows it to fit around an object, while the threaded ends enable secure fastening with nuts.

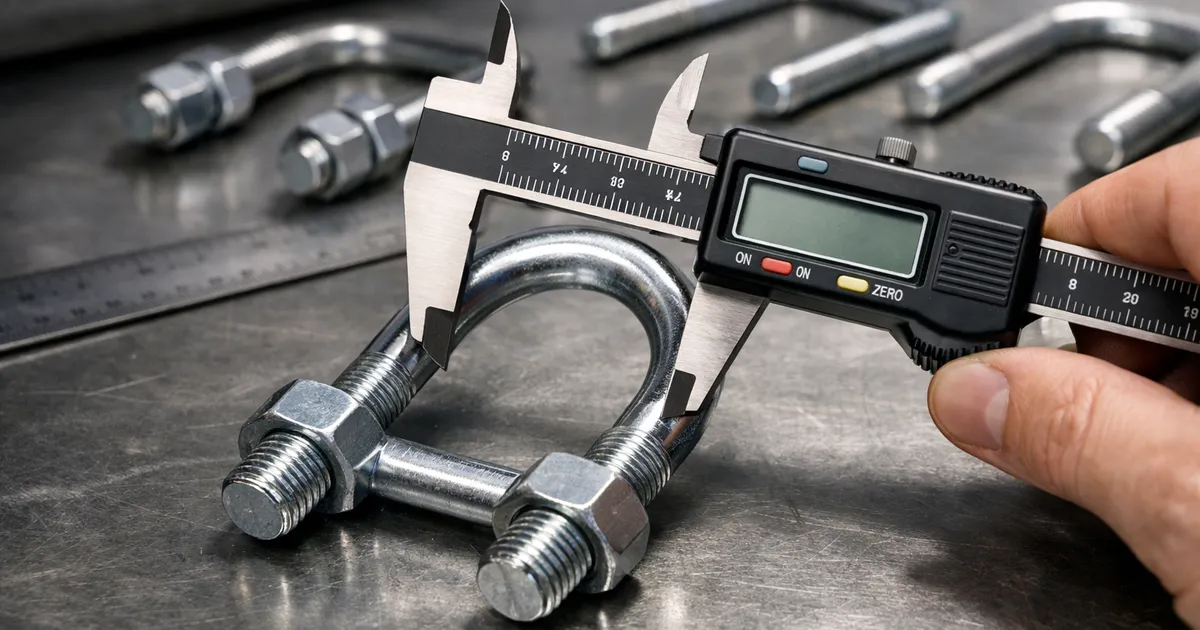

Key Measurements for U-Bolts

When it comes to how U-bolts are measured, the following key dimensions are critical to ensuring a proper fit for your project:

1.      Inside Width (A)

The inside width refers to the distance between the two legs of the U-bolt. This measurement is crucial because it determines the diameter of the pipe or object the U-bolt is meant to fit around. For example, if you are mounting a pipe, you need to measure the outer diameter of the pipe and ensure that the U-bolt’s inside width accommodates it properly.

2.      Leg Length (B)

The leg length is the distance from the inside of the U-bolt (where it contacts the pipe) to the end of the legs. This is important because it determines how far the U-bolt will extend outward from the object it is securing. The length of the legs should match your mounting or installation needs.

3.      Thread Length (C)

The thread length is the portion of the U-bolt where nuts are fastened. This is an essential dimension that ensures the U-bolt has enough threaded area to provide a secure hold with nuts. The thread length must be long enough to accommodate the nuts without compromising the strength of the hold.

4.      Thread Size (D)

Thread size refers to the pitch and diameter of the threads on the U-bolt. Standard thread types are typically UNC (Unified National Coarse) or UNF (Unified National Fine). It’s important to choose the right thread size to ensure it matches the nuts and components it will be paired with.

Why U-Bolt Measurements Matter

Proper U-bolt measurements are essential for making sure the bolt functions as intended. If the dimensions aren’t right, you risk damaging the pipe, frame, or surface it’s mounted to, or you might end up with a bolt that doesn’t hold properly. A U-bolt that’s too tight can cause material deformation, while one that’s too loose can lead to instability or even failure under load. Also read about Metal Fabrication Quotes.

Final Note

How are U-bolts measured? It’s all about precision. From inside width to thread size, each dimension plays a critical role in ensuring your U-bolt fits snugly, works securely, and performs reliably.

At Stelrod Mfg, we understand the importance of getting every measurement right. We specialize in custom U-bolts in Ontario, tailored to your exact specifications. Whether you’re working on a small-scale prototype or a large industrial installation, we provide high-quality, precisely measured U-bolts that meet your exact requirements.

If you’re ready to order custom U-bolts in Ontario or need expert guidance on measuring, contact us today. Let’s get your project fastened, securely, and accurately, from start to finish.
